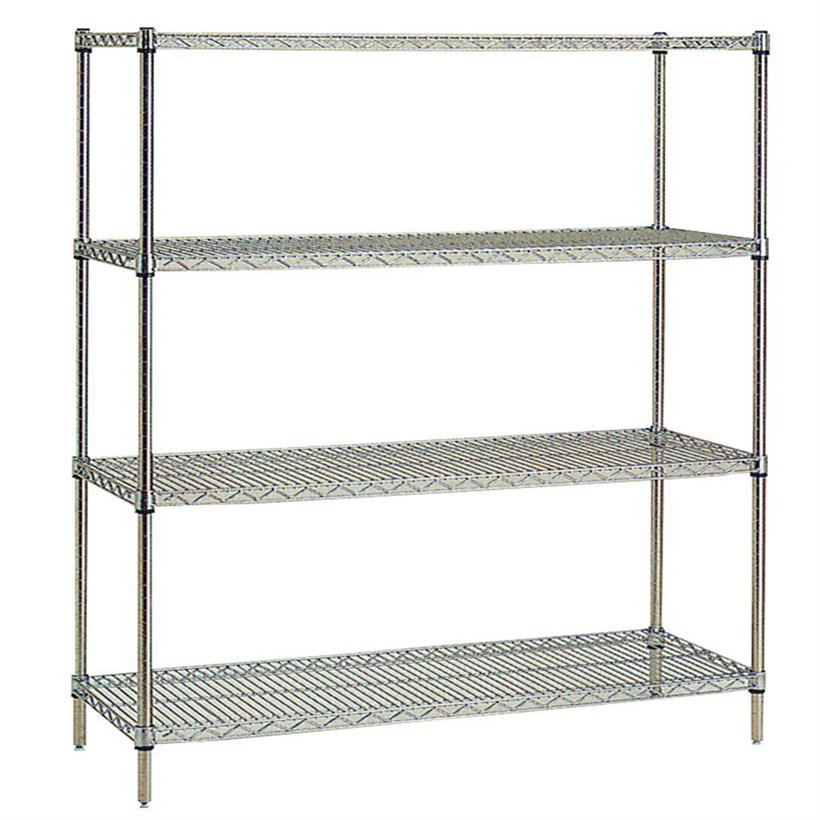

Product Name: Mesh shelves
Product Model: CN-2063C
Material:Stainless steel/carbon steel
Main configuration; four columns；Four layers of the racks, There are 3 sets of plastic clip in each layer; 1set of metal clip.
load carrying capacity: 100kg/layer
Ground Resistance: 107Ω-109Ω
It can be made according to customer’s requirements
Specification of the shelves
|
NO |
Products Name |
Length |
Width |
|
1 |
Meshes |
24”(600mm) |
14”(350mm) |
|
2 |
Meshes |
30”(750mm) |
14”(350mm) |
|
3 |
Meshes |
36”(900mm) |
14”(350mm) |
|
4 |
Meshes |
42”(1050mm) |
14”(350mm) |
|
5 |
Meshes |
48”(1200mm) |
14”(350mm) |
|
6 |
Meshes |
60”(1500mm) |
14”(350mm) |
|
7 |
Meshes |
72”(1800mm) |
14”(350mm) |
|
8 |
Meshes |
24”(600mm) |
18”(450mm) |
|
9 |
Meshes |
30”(750mm) |
18”(450mm) |
|
10 |
Meshes |
36”(900mm) |
18”(450mm) |
|
11 |
Meshes |
42”(1050mm) |
18”(450mm) |
|
12 |
Meshes |
48”(1200mm) |
18”(450mm) |
|
13 |
Meshes |
54”(1350mm) |
18”(450mm) |
|
14 |
Meshes |
60”(1500mm) |
18”(450mm)) |
|
15 |
Meshes |
72”(1800mm) |
18”(450mm)) |
|
16 |
Meshes |
24”(600mm) |
24”(600mm) |
|
17 |
Meshes |
30”(750mm) |
24”(600mm)) |
|
18 |
Meshes |
36”(9000mm) |
24”(600mm) |
|
19 |
Meshes |
42”(1050mm) |
24”(600mm)) |
|
20 |
Meshes |
48”(1200mm) |
24”(600mm) |
|
21 |
Meshes |
54”(1350mm) |
24”(600mm) |
|
22 |
Meshes |
60”(1500mm) |
24”(600mm) |
|
23 |
Meshes |
72”(1800mm) |
24”(600mm) |
|
24 |
column |
36”(900mm) |
|
|
25 |
column
|
48”(1200mm) |
|
|
26 |
column |
54”(1370mm) |
|
|
27 |
column |
60”(1500mm) |
|
|
28 |
column |
64”(1600mm) |
|
|
29 |
column |
72”(1800mm) |
|
|
30 |
column |
79”(2000mm) |
|
|
31 |
wheel |
3”(75mm)Ordinary rubber wheel |
|
|
32 |
wheel |
4”（100mm）Ordinary rubber wheel |
|
|
33 |
wheel |
3”(75mm)conducting wheel |
|
|
34 |
wheel |
4”（100mm）conducting wheel |
|
|
35 |
The metal clip
|
1”（24.5mm） |
|
|
36 |
The plastic clip
|
1”（24.5mm） |
|
